This is a testing sandbox for developing various methods of injecting symbolic knowledge into neural networks. This symbolic NN approach is intended to facilitate the training of models for physics based problems where process complexity and data availability are generally significant hindrances to the application of NNs. By injecting known, symbolic human knowledge we aim to guide the model towards the correct embedding space more quickly than could be achieved through pure statistical loss.

Experiments

Experiment 1 - Relationally embedded Semantic Loss Functions (SLF)

Planning

Simple semantic loss based on intuitively noticeable properties of numeric characters
Makes use of manually made reward matrices to weight rewards depending on how "close" the model was
Very rudimentary example of semantic loss

Mathematical Implementation Details

Initially, the semantic penalty was multiplied by the cross entropy loss and summed over the batch. This unintentionally acted as a massive scalar multiplier on the gradients (by a factor of the batch size). The semantic maths have since been refined to: 1. Probabilities: Apply softmax to raw logits to convert them to probabilities before absolute difference calculations. 2. Scale Invariance: Average (.mean()) the penalty across the batch instead of summing (.sum()) to prevent batch size from inflating the penalty magnitude. 3. Additive Loss: Add the penalty to the base loss (ce_loss + alpha * semantic_penalty) rather than multiplying them, preventing extreme, unintentional learning rate inflation on the base gradients.

Results

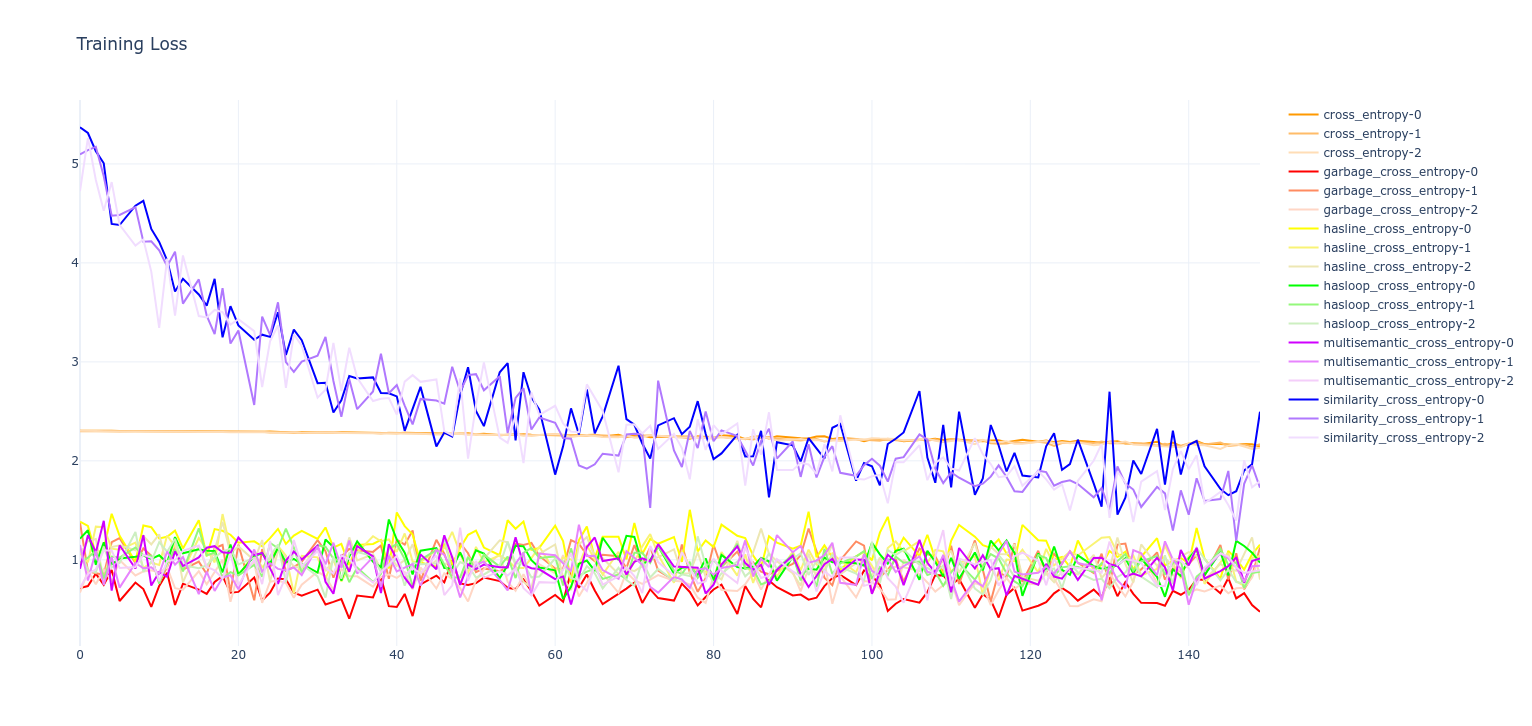

Training loss

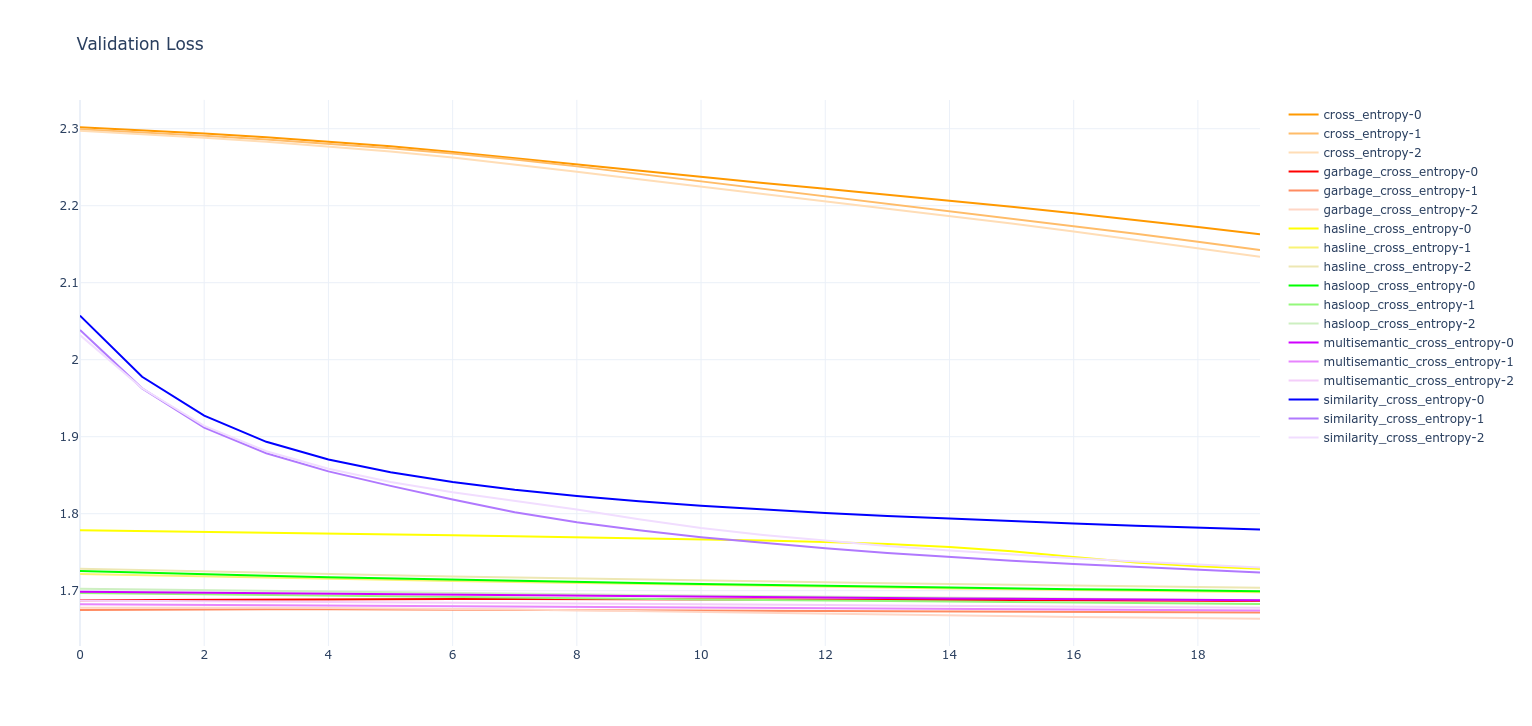

Validation loss

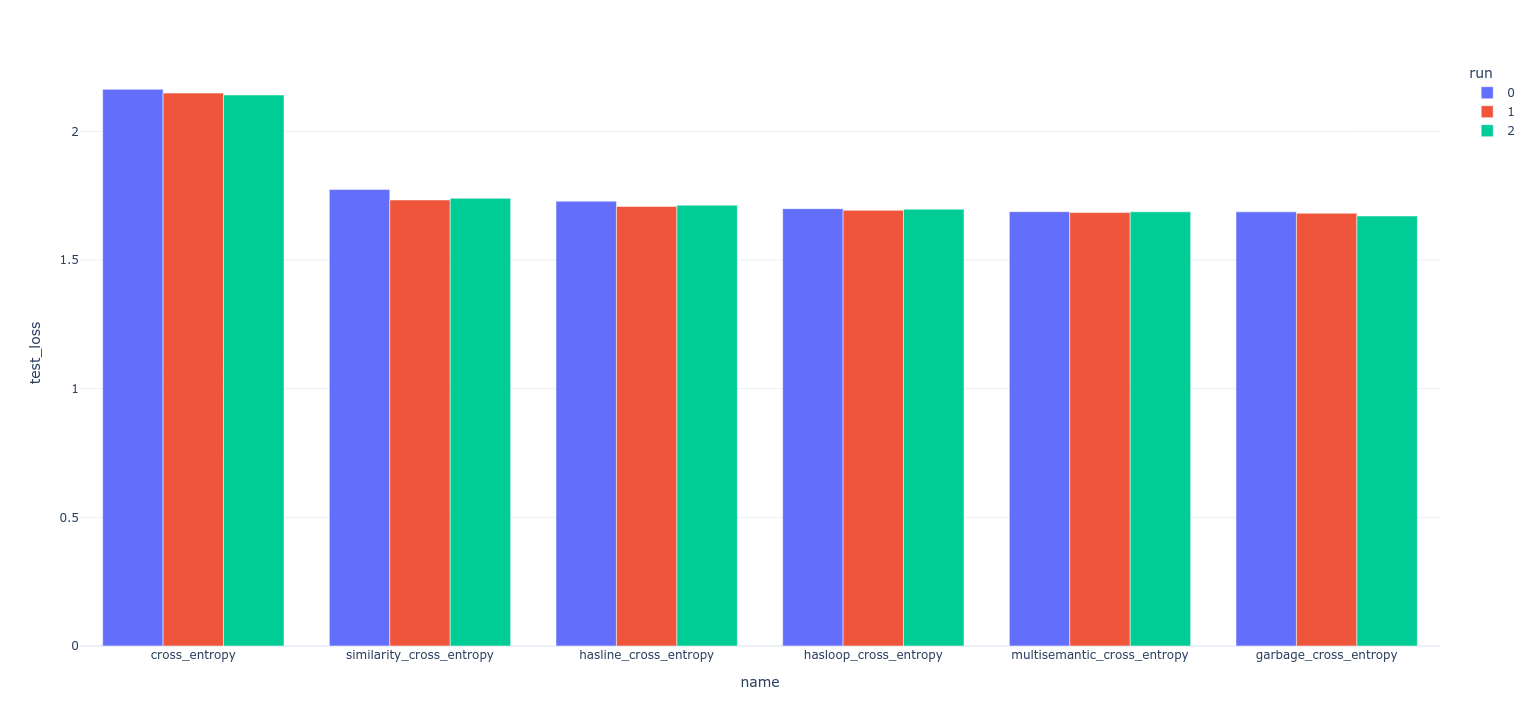

Test loss

Conclusions

Seems to have worked
- Clear improvement in training rate with semantics added
- Similarity cross entropy in particular shows clear signs in validation loss of being on a similar complementary CDF to the normal cross-entropy loss, but training faster
Interestingly: the "garbage" cross entropy seems to have also produced a very good result! This is likely because it hasn't been normalized to 1, so it may be simply amplifying the gradient by random amounts at all times. Basically acting as a fuzzy gradient booster.
I would consider this experiment a success, with some interesting open questions remaining worth further examination

Experiment 2 - Dataset qualitative characteristic derived SLFs

Planning

Makes use of known physics equations that partially describe the problem to guide the model
- Reduces the need for the model to learn known physics, allowing it to focus on learning the unknown physics
- Should accelerate training
- Allows for easier model minimisation
Dataset selection will be important here
- Needs to be a familiar area to the experimenter
- Needs to be openly available
- Needs to describe a problem complex enough that we wouldn't just be fitting on a known equation (e.g: if we were to try Hooks law we would just fit to the equation which would be pointless)
Possible candidate datasets:
Decided to use Molecular Properties dataset as it is quite familiar to me
Training with semantics added to renationship between molecular energy and differential electronegativity
- Semantics being injected are:
  - These values should be positively corellated
  - These values should be weighted towards a high r^2 with an adaptive penalty
- Multiple attempts carried out:
  - Simple penalties. Variations tested include:
```
Loss = ( Softplus( -m ) + 1 ) * SmoothL1Loss
```
```
Loss = ( Relu( -m ) + 1 ) * SmoothL1Loss
```
```
Loss = ( \frac{1}{Sech(|r|)} + 1 ) * SmoothL1Loss
```
```
Loss = ( {r}^2 + 1) * SmoothL1Loss
```
  - Adaptive, self training penalties tuned by various methods. Best method found was optimisation by a random forest regressor. These tunable variants include:
```
Loss = ( Softplus( \alpha * -m ) + 1 ) * SmoothL1Loss
```
```
Loss = ( Relu( \alpha * -m ) + 1 ) * SmoothL1Loss
```
```
Loss = ( \frac{ 1 }{ Sech( \alpha * |r| ) } + 1 ) * SmoothL1Loss
```
```
Loss = ( \alpha * { r }^2 + 1) * SmoothL1Loss
```
  - Final adaptive semantic loss function tested (called positive_slope_linear_loss) was the following:
```
Loss = ( \alpha * { r }^2 + 1) * ( \frac{ 1 }{ \beta } * log( 1 + exp( \beta * \gamma * -m ) ) + 1 ) * SmoothL1Loss
```

Results

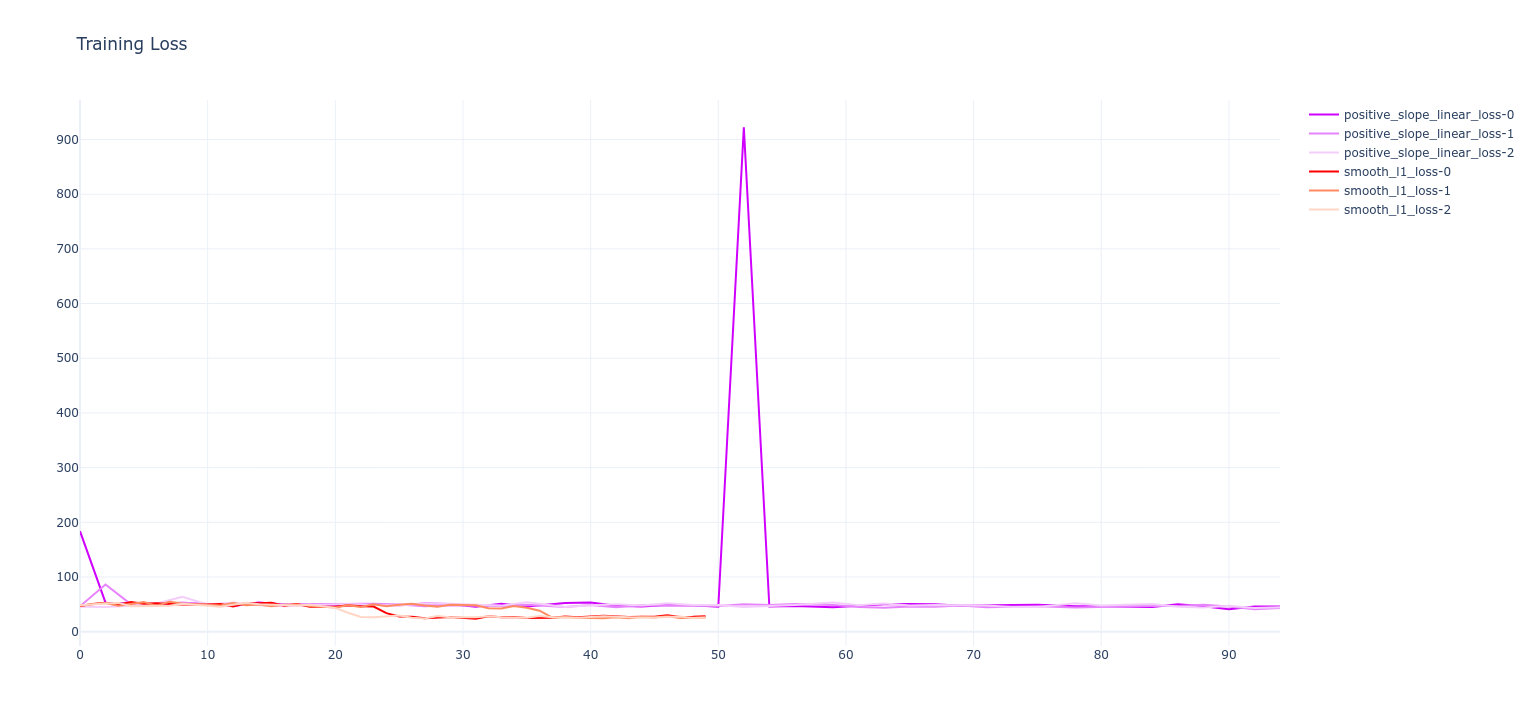

Training loss

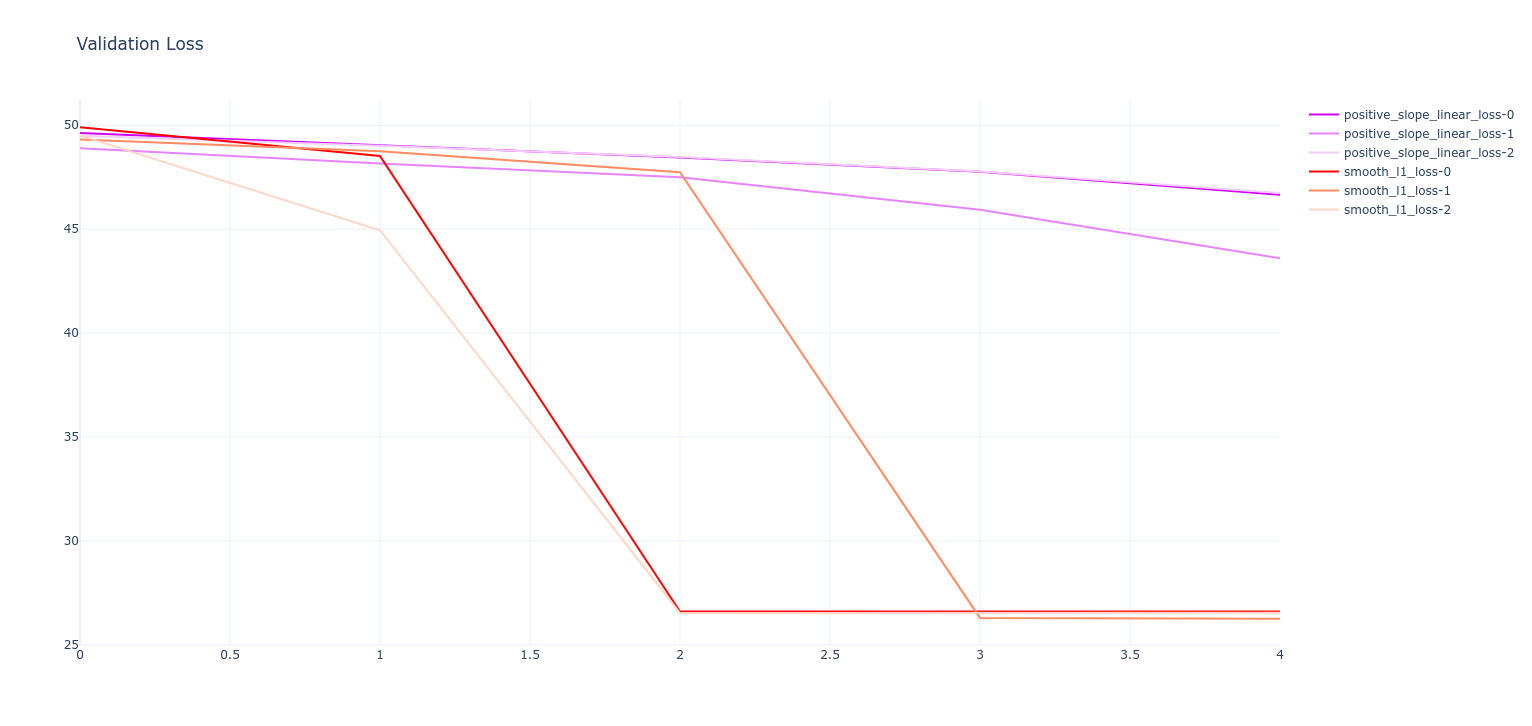

Validation loss

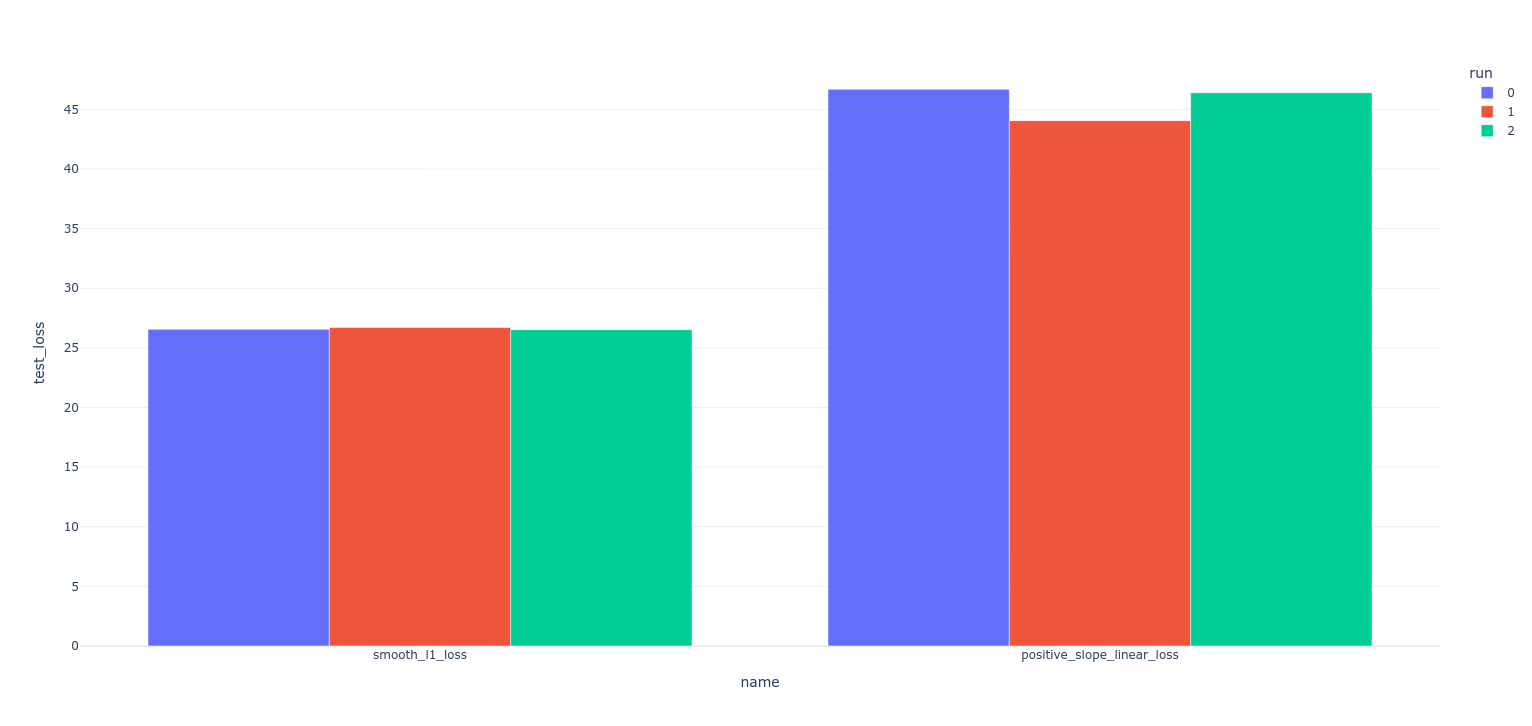

Test loss

Conclusions

Method didn't appear to work too well because:
- Simple loss functions tested were likely suboptimal for effectively influencing model
- Guesses at parameters in simple functions need to be optimised, basically turning this into a hyperparameter optimisation problem, which defeats the purpose of semantic loss
- Adaptive, ML based loss functions do not appear to be converging quickly enough to train the model faster than the normal loss functions
For this reason, I would conclude this experiment as a failure

Experiment 3 - Tensor Logic Network (TLN)

Revisiting QMNIST from Expt1 but using TLN instead of SLF.
Using LTNtorch library or maybe Scallop lang, as manually defining logical constraints would be a pain here.

Will create formalised logic definitions of non-fuzzy relations manually embedded in Expt1:

Numbers with Lines:

\forall x ( Numeral(x) \to \exist HasLine(x) \oplus \exist NoLine(x) )

Numbers with Loops:

\forall x ( Numeral(x) \to \exist HasLoop(x) \oplus \exist NoLoop(x) )

Where:

Zero(x) \to NoLine(x) \land HasLoop(x) \\
One(x) \to HasLine(x) \land NoLoop(x) \\
Two(x) \to NoLine(x) \land NoLoop(x) \\
Three(x) \to NoLine(x) \land NoLoop(x) \\
Four(x) \to HasLine(x) \land NoLoop(x) \\
Five(x) \to HasLine(x) \land NoLoop(x) \\
Six(x) \to NoLine(x) \land HasLoop(x) \\
Seven(x) \to HasLine(x) \land NoLoop(x) \\
Eight(x) \to NoLine(x) \land HasLoop(x) \\
Nine(x) \to HasLine(x) \land HasLoop(x)

Implementation Details

The logic has been successfully implemented using the scallopy Python library to embed differentiable logic within the PyTorch training loop.
Two distinct semantic loss variants were created:
- Boolean Semantic Loss: Computes MSE over pure True/False boolean probability distributions of whether a number contains a line or a loop.
- Kleene Semantic Loss: Explores 3-valued logic (True, False, Undecidable) to penalize the model for confusing epistemic uncertainty with ontological ambiguity, computing MSE over 3D probability distributions.

Results

Training loss
Validation loss
Test loss

Conclusions

The experiment was a massive success!
Embedding logical constraints using Scallop guided the model highly effectively, and both Boolean and Kleene semantics provided differentiable gradients that dramatically improved the learning outcome on QMNIST.

Experiment 4 - Continuous Differentiable Logic Relaxations (LTN & Kleene/Belnap Semantics)

Planning

This experiment serves as an architectural extension of Experiment 3's logic on the QMNIST dataset.
The goal is to avoid external symbolic execution engines (like Scallop/PySDD) and natively evaluate the probabilities and truth values using lightweight continuous mathematics in pure PyTorch.
We implement several continuous logic relaxations, progressing from basic Boolean logic to expressive Bilattice (Fuzzy Belnap) logic that natively models epistemic uncertainty without non-differentiable logic solvers.

Implementation Details

Five distinct loss function paradigms were implemented natively in PyTorch: 1. Exact Boolean Semantic Loss: Maps strict true/false constraints into (10, 2) label tensors and natively evaluates boolean constraint probability across the predicted class distribution. 2. Logic Tensor Networks (LTN): Utilizes fuzzy logical operators (e.g., Lukasiewicz equivalence) to evaluate continuous tensor satisfaction bounds in [0, 1]. 3. Exact Kleene Semantic Loss: Maps the three states of Kleene logic (True, False, Undecidable) directly into a (10, 3) evidence distribution, computing the continuous Euclidean expectation natively in PyTorch. 4. Gödel LTN Semantics: Maps Kleene's Undecidable state to the 0.5 truth value, using Gödel t-norms (min/max) to evaluate logic constraints natively on epistemic uncertainty boundaries. 5. Fuzzy Belnap Logic (Bilattice LTN): Evaluates evidence for Truth (t) and Falsity (f) completely independently over two orthogonal dimensions. This avoids arbitrarily forcing total probability constraints and handles true logical contradiction (Overdetermined / (1.0, 1.0)) and ignorance (Underdetermined / (0.0, 0.0)).

Results

The test results natively match and seamlessly track the accuracy metrics achieved by the heavy Scallop engine in Experiment 3.
All models achieved approximately ~81.2% - 83.3% test accuracy, properly internalizing the structural constraints of loops and lines within QMNIST.
Fuzzy Belnap Logic, in particular, offers extremely smooth continuous gradients for training due to the independent tracking of dual-axis evidence.

Conclusions

The experiment was a resounding success, proving that complex non-classical logic states (such as Kleene's Undecidability or Belnap's Overdetermination) can be modeled highly effectively as pure PyTorch continuous tensor operations without offloading to discrete symbolic logic engines.

Experiment 5 - Semantic loss by using SmoothMax to bake in relational embeddings

Planning

This experiment serves as an architectural extension of Experiment 1, using SmoothMax to bake the relations directly into the loss function
The goal is to achieve a similar effect to Experiment 1, but to create a continuously combined differentiable landscape that can direct training more efficiently
We use pytorch's builtin logaddexp function to bake the top hat functions from the relational matrix directly into the loss function

Results

Test results show these semantic loss functions to provide only negligible improvement over naive categorical cross entropy.

Conclusion

This experiment appears to be a failure. I don't know why though. My suspicion this is probably moreso a matter of optimising alpha and temperature than it is a matter of this not being able to work. But if so, the approach in Experiment 1 is likely superior in most cases.

Experiment 6 - Application of Semantically Meaningful Gradients (PINNs)

Planning

Attempts to embed semantic knowledge by converting to a gradient and applying that gradient as part of the training (tech nique used for PINNs)
The goal is to achieve a similar effect to Experiment 1, but without having to manually modify gradients every time. Basically: we want to bake the semantic knowledge directly into the gradient flow of training
After some trial and error: implementing this PINN using the PCGrad method.

Results

Test results show this approach generally UNDERperformed relative to plain categorical cross entropy.

Conclusion

This experiment is a clear failure. I suspect that maybe the derived formula we're embedding isn't a rich enough representation to get meaningful gradients out of. Should probably re-test this with the actual physics based test from experiment 2.
